More Better Mapping of Oakland’s Populations

OAKLAND

Maps have long been described or conceived as windows–analogous in ways to pictorial perspective–that invite viewers to look into a space in new ways.  But both word maps as the above, made of the names of Oakland’s almost 150 different neighborhoods, or more statistically derived data visualizations of the city are mirrors that present a less homogeneous or continuous image of the city that we want to see:  if the roughly type-set image above suggest a make-do approach of the somewhat scruffy post-industrial port city with big loading docks, but erase its dirt or drastically depressed areas with lively type.

Data visualizations offer mirrors of the city’s inhabitants and shifting neighborhoods that are both dependent on the source-data that they use, and how they obtained it, but also on the dynamic layers that digital mapping allows us to place as overlays on the base-map of the city’s mountains and shores.  While these maps are only as good as the data that they use, they reflect back some of the divisions in the city that we might not otherwise notice or want to see.

And while not based in prose in the same manner as the Ozan Berke’s word-map that nicely knit together the city’s 146 vastly different neighborhoods, they offer ways of reading the city’s multiple divides.  The increased data that is available from Open Oakland and other sources will doubtless offer further–and far more refined–images of the city’s deep differences and their bridging, and can serve as better and more detailed maps of its populations.  But in the meantime, the sorts of mirrors these maps offer can also provide ways to imagine paths toward a future for Oakland, and better understand ways forward in its public policies.  Many of them draw from the American Community Survey, created by the US Census and discussed in earlier posts, but all seek to focus attention on the city and to serve, as mirrors, to show differently refracted visions of its divides, in the hope that few distort Oakland’s diverse populations.

A famous image of the distinctly uneven distributions of Oakland’s inhabitants is clear in a recent mashup of maps of the Bay Area Rapid Transit system’s public transport map–or, more simply, BART map–with the very zip codes that the American Community Survey mapped, which offers a condensation of the remarkable disparities and differences between income, education, child health and life expectancy at separate stations on the same public transport lines:

BART Health Map:Life Expectancy at BART stops

While, to be sure, the system includes suburbs such as Walnut Creek or Fremont, its focus on the East Bay  immediately indicates the deep divisions in a city where a BART stop can take one between areas of over ten years difference in life expectancy, and two more stops down either line sees life expectancy rise by seven or eight years once again.  The huge rise in childhood hospitalizations because of asthma in the City Center–far greater than in Fruitvale–suggests the unique pollution habits of a city whose air quality is still shaped by its proximity to a port.

The image of the diverse city whose neighborhoods are bound together as one unit starts to reveal fissures when one examines its ethnic and voting distribution at a somewhat finer grain, adding to the historical variations in the picture of the city summarized and surveyed in an earlier post.  The problem of mapping those populations adequately, both to reveal the ongoing inequalities and spatial injustice within the city, is not inherent in the city’s structure or divisions, but something that compels visualization in a myriad of ways, and in which we can look for different understandings of the shifting nature of the city’s socioeconomic (and sociocultural) divides.  As well as mapping the lay of the land, mapping the habitation of space creates even more of a “mirror” on the organization of th eplace.

Census_Mosaic

The census mosaic only shows part of the inhabitants’ picture.  Indeed, perhaps a “racial dot” map can be rehabilitated, rendering one dot/twenty-five people, to create a rough distribution Bay Area-wide that respects the looser definition of “neighborhoods,” and does not impose strict racial segregation, as in this image by Eric Fischer, using red dots representing whites, blue representing blacks, green representing Asian and orange Latino populations, in trying to prevent  overlapping and blending of color-points,  and better to define neighborhoods as an ethnic or racial enclave:

Racial Map SF--25:dot Eric Fischer

Fischer seeks to respect Bill Rankin’s cautionary words that boundaries of neighborhoods are never so stark as on informational graphics, and that a cartographical index of one dot for twenty-five people is better able to allow “transitions also [to] take place [registered] through gradients and gaps” in the map’s surface, suggesting an urban geography without clear boundary lines, clear spatial differentials clearly emerge across the neighborhoods of Oakland, CA:
Oakland Alone--Fischer

And while the city was once historically predominantly black, or African American, in its population, one still found clearly define enclaves of blacks that are, sadly, starkly isolated in census blocks, based on results of the 2005-9 U.S. Census:

2005-2009 % Afr Am Oakland

One can map, in relation to the racial composition of the city, the relative percentages of kids in public schools, one index of its community, and the stark dividing lines created by some of its highways and major roads, which divide the regions of the hills from the flats, where few kids attend private schools.

Elementary School Kids in Private Schools

This is given much further definition by the map of those who have completed high school, already used in in my earlier post in a slightly different version, which suggests a chasm between cultures of neighborhood far deeper than race alone.

High School Graduation

Perhaps the starkest underpinnings of this cultural divide is a map using the 2010 Census to define an ESRI visualization, of the city’s divide in income levels in the city and outlying areas:

oakland's Income in bay Area

Which one can zoom into for the City of Oakland, revealing a clearer divide in incomes around  Highway 24, still using Census Blocks, that again reveals some intermingling albeit with sharp divergences in Oakland that stand in sharp contrast to the larger Bay area:

Median household Income East Bay-Oakland in it

To track a deep change in the population of the city that occurred in only recent years,  Pietro Calogero tracked racial displacement from many neighborhoods that illuminate this divide in incomes, around the aftermath o California’s housing crisis.  The map of foreclosed real estate in west and southeast Oakland, the former “industrial areas,” which stand in sharp contrast to wealthier areas in the hills, to illuminate an economic ravaging of the city that shows up in no other way in a simple map–and indeed masks innumerable individual stories of foreclosure and moving out:

Foreclosures OAK

Although perhaps the map of foreclosed houses is difficult to tie to race, Calogero comes closest to revealing stories with a map in choosing to map how African American families were in fact disproportionately effected by foreclosures, and how former African American neighborhoods were gutted from the inside out as residence became unsustainable:

African Americans and Foreclosure in Oakland

The effective narrative of racial displacement that these dynamic maps isolate and present is not only compelling, but raises questions of social justice–and perhaps of social justice and urban mapping.   Despite the broad interpretation of displacement, both when occupied by owner or purchased as an investment, the clear overlap between categories of race and foreclosure seems not only unjust, but a deep crisis, underscoring and mirroring the deep segregation that continues in so many American cities.

And the repercussions of this sort of segregation are evident in the apparent disenfranchisement of despair, revealed in this simple map of voter participation that Ofurhe Igbinedion so astutely thought to create from Alameda County electoral data, which shows a valley of voter absenteeism in an area where the 2010 voting held low potential or positive prospect:

Oakland Voter Turnout

(Igbinedion’s striking–and dismaying–map, reduced in size above, may be viewed in far greater detail here, and will be posted in full with a commentary at http://www.infoalamedacounty.org).

The huge fall-off in turnout among the same population of a territory of disclosure suggests a political disconnect scary in its dimensions, if sadly typical for most American inner cities.  But the cavities of voter turnout in an election for which turnout was itself particularly high–or just short of 75% (74.52%)–suggests a sense of a politics of abandonment.  What, indeed, did the election accomplish for a large percentage of the city?   What resonance did the candidates even hold, or could they hold?  The topography of disenfranchisement is arresting if not puncturing of a vision of a city united in its neighborhoods, and sort of undoes the unity of its own mapping of continuity.

It is a sort of inversion of density.  Mapping the density of population in Oakland by census blocks reveals not only clear neighborhood divides but a uniquely geographic dispersal of demographics, most dense between the freeways and thinning out to the hills and the flats:

Oak Pop Density

There may be real reasons for not living by the shore below the freeway:  the area is not only late-industrial, but the ships spewing sulfur dioxide and pollutants exceeding standards for vehicles that are registered in the United States create a spew of particulate matter over the downtown area not confined to West Oakland, but reaching in to Chinatown, Emeryville and the Downtown area, areas downwind of the port, in this truly terrifying map, posted in 2013 by Sarah Brady and Alfred Twu, and charting the sulfur dioxide and particulate emissions of ships, using the Port of Oakland Emissions Inventory:

oakland-port-and-highway-air-pollution-map

The map reveals regions with air pollution up to 10 times the national average a couple of miles from the port, but whose effects increase risks of cancer and asthma extending twenty miles inland, creating a poorly-known map of particulate matter as an argument to raise pollution standards in Oakland’s port.  Notwithstanding the much-vaunted clean-up of the Port of Oakland, which were aimed primarily at legal safeguards at the level of diesel particulate emissions–emissions that have been largely blamed for sever respiratory problems among local residents–which have indeed decreased from 261 tons to some 77 tons in seven years. (If this was a reduction of 70%, the stated goal of the Port is to further reduce the emissions by 80% by 2020; since July 2009, ships have been required to use low-sulfur fuels within twenty-five miles of the coast, however, and the sulfur-dioxide emissions tied to asthma are not likely to decrease.)

Perhaps it’s not uncommon to value (and inhabit) property away from the shoreline.  Examining relations between elevation and population density in the wake of the shifting consciousness of the relation between water-elevation and land-use after Hurricane Sandy, Stephen von Worley offered the following interesting alternative visualization mapping elevation and population density on a spectrum moving from white to yellow to orange to blue, to show the sharp divide between hills and flats in the East Bay:

Stephen Whorley, Elevation and Poopulation Density (2010)scale von whorley

A nice register of how this space is actually used or perceived, and, equally important, moved through, based on a collation of the adjustments to Open Street Maps of the city, suggests the well-travelled nature of Oakland’s major arteries and downtown roads.   How might this be registered in the surface of the map? is a question that is nicely resolved in this map of Oakland’s self-mapping of its major roadways.

Oakland, McConchie-every line, every point- OaklandAlan McConchie–Stamen design

The Open Street Map view of Oakland, rendered so distinctively by Alan McConchie, tells a perfect story of the inhabitation of Oakland’s space by its routes of mobility, recalling the sort of GPS-derived maps increasingly common from artists like Jeremy Wood, who practiced “drawing with GPS” as a line of work:  it would be interesting to be able to map street-use at different times of the day, if possible, though deriving data of the abandonment of downtown Oakland when dark is undoubtedly difficult.

The divergence of nighttime and daytime is evoked, if not measured, in Michal Migurski’s brilliant layering of a “heat map” of crime–based on police visits per unit of time–over an OSM template, both layered with a semitransparent streets that interact smoothly with the underlaid data; the combination of layers effectively allowed Migurski to adapt a heat-map of crime to downtown Oakland, using police visits per unit of time as a metric as part of his active and for its time particularly innovative Oakland Crimespotting, in the hope that the HeatMap APIs won’t obscure either context or specifics, and provide a legible text.

map-13

One could argue that this mapping of hot-spots excessively illuminates those areas of BART stops, where more police calls would tend to occur–and, in the case of 12th street and downtown, more street folks congregate.  But the increased number of calls provides a basis to register local attention to crime and property protection, or how the city sees itself.

And how Oakland maps its own crime, or tends to monitor its own possessions, is foregrounded in this striking map of the downtown density of security cameras, often placed in response to fears as much as evidence.  This final map of the installation of security cameras downtown points up the increased anxieties of its safety, almost in response to and the perceived need to monitor public life, and registers the odd dynamic of a downtown business zone that has few residents, and whose topography of suspicion vastly changes as one moves from daytime into night–when downtown is increasingly abandoned by workers or street populations.
WATCHING Oakland

We’re clearly fascinated by the different images of the city’s different composition and divides, and in understanding how best to work within them, or to heal them as best we can. The mapping of security cameras–if focussed in the downtown area–reveals a sense of deep divides, and a perceived in security, no doubt partly voiced as inadequate police coverage among businesses, as much as the city’s residents.  This map, also a mirror, in part doubtlessly contributes to the image Oakland projects, an image that is underscored by deep divide Eric Fischer revealed in his remarkable ‘Bay Area’ map of photographs uploaded by “tourists” v. “locals,” red v. blue, in a database that charts a tale of the visual interest of two cities:

Eric Fischer- Locals v non-Locals in SF:Oak

There are many other, more positive maps of the city’s populations, no doubt, and other mirrors that reveal great changes in the city’s diverse communities.  But only by understanding the lay of the land, as it were, and situation of these communities, can we hope to understand the unique challenges that the city faces.

The ambitious investment by a generous benefactor of a whopping $34 million in Oakland’s job-training and education efforts in the summer of 2015 may be the start of a broader investment in what the city has to offer.  The distribution of needed resources by the San Francisco Foundation seems both brave and smartly apportioned:  the decision to focus on specific neighborhoods, and improve the access of those regions to both in-school training and potentially productive housing to public health and from public instruction to community arts groups seems a good one, and breaks down along lines that the city could use, with East Oakland getting an important and much-needed injection:

OaklandOpportunityImpactOverview-1024x663

If many public services are lacking in Oakland–and the poor fit between local economy and job-training has been endemic to much of the city–this seems at least to be a fortunate and very well-intentioned start.

The huge impact on introducing training and resources for early childhood education, trauma and health specialities, and, in part, conflict resolution, provides an important start to break from the deep divisions that have long been present in public education, and the lack of needed resources for many public schools not located in neighborhoods that are able to subsidize or assist needed programs.

Impact on Oak Schools

2 Comments

Filed under mapping racial segregation, Oakland

Oakland Represented Variously: What We See When We Map Oakland’s Inhabitants

The range of ‘open’ online data that is available for a city such as San Francisco showcases the city’s clear definition of a public space.  Although there are plenty of spaces of local meaning and importance in Oakland, from the site of Occupy near the mayor’s office to nearby Chinatown and Lake Merritt, or from Fruitvale Station to west Oakland urban farms and on to Alameda, the fragmented nature of public space is difficult to map coherently.

When it comes to public space, the East Bay and Oakland–despite a rich variety of parks, an estuary, and increasing vitality of Jack London Square–is a polycentric sprawl, its former downtown interrupted by freeways, and open boulevards dotted with closed commercial centers, beauty supply zones, or dense interchanges.  This is in part due to how little the diverse areas and neighborhoods of the city know themselves.  How to map the inhabitants of Oakland, CA, given the considerable diversity across neighborhoods?  Does it exist as a unified social space, or what image of the city emerges?  By looking at some of the census maps of the city, and mining the range of information compiled in them by displaying their data in mapped form, we can process and digest the complexly variegated nature to view its population’s profile.  (Indeed, the problems of politically representing the complex composition of a somewhat divided city were revealed in the most recent mayoral election of 2014.)

The sprawling city challenges the abilities of the social cartographer as much as the post-modern space of Los Angeles, even in this real-estate view.  Maps of any scale organize social space by relevance, preparing a selective record of its inhabitation and revealing networks for ready consultation.  Maps of any scale create a simulacrum or construct of social reality, as much as simply orient their readers:  the city’s salient features highlighted and network of organization explained, omitting other spaces and residents. We might start by acknowledging how the below bird’s-eye view of Oakland from c. 1900, of unknown origin, celebrating the city’s settlement and early Bay Area Real Estate:  the engraving showcases an open urban grid as an area becoming future realtors to its shores:  if mostly green and largely uninhabited, presents a prospective view of the city-port as a commercial center, showcasing notable houses of prosperous residents that distinguished Oakland’s built environment, and beckoning viewers to its estuary and the man-made shores of its new Lake as if to shift our attention from the city of San Francisco.

Oakland 1900

Elevated or “bird’s eye” views praising urban identity and architecture such as this anonymous print had a long tradition.  Such imagined constructions that gained currency as encomiastic forms, often complemented by poetic paens to their social harmony.  If the artist who engraved and designed the elevated map is not known, the presentation of the city’s growing physical plant and street structure echoed the architectural elegance of earlier urban views, as the visual encomia to the elegance of architectonic form of Venice in the virtuosic perspective designed by Jacopo de’ Barbari circa 1500 of his own creation.  De’ Barbari exploited skills of perspective to craft a graphic and pictorial encomia to his native city’s architecture and burgeoning wealth to trumpet its social distinction; an earlier elevated view of Florence, sold by the cartographer and engraver Francesco Rosselli similarly celebrated and displayed the architecture of his native city.  De Barbari famously employed to evoke the harmonious order of his city, also lying in close proximity to surrounding wetlands, by displaying its distinctive harmony–vaunting its delicate socio-political balance figuratively by deploying his mastery of creating a previously unimaginable perspective to considerable effect, showing the density of its architecture in the watery surroundings.

Jacopo_de'_Barbari_-_Plan_of_Venice_-_WGA01270

Even if much of present Oakland seems a bit of a blank slate, whose territory expands from its port and the man-made lake built to beautify its urban estuary, the print of c. 1900 divides plots and settled acreage, as the surrounding images of buildings that testify.  This is not only a pictorial space, but an attempt–as the Rosselli and de’ Barbari maps–to show the social space as harmoniously mapped to a pictorial space of representation, and distinguish the city as a microcosm of the world.  Both maps offer  sophisticated visual glosses on the ancient notion of a “chorography” or qualitative view of a community, elegantly overlaying and equating their imaginary perspectival space with he social spaces of each city.

Can we create a modern chorography of Oakland that both displays and comprehends its dynamic heterogeneity, or would the city split into social divides?  Google Maps clearly fails to do so, but what would a comparable mapping of Oakland’s populations look like, perhaps mapped from the ground up–in the manner that Jacopo labored to achieve?

OAK Topographical

There was clear redlining of much of the East Bay’s residential areas in real estate maps for the East Bay cities dating from the Depression, in which Home Owners Loan Corporation rated neighborhoods for the refinancing of mortgages  that amounts to a reflection of the value of property in the East Bay, and reveal an odd mosaic of the city that privileged some regions, but also include a clear redlining of those regions by the Bay and the main arteries of transportation that continue to define Oakland’s port.  The red-lining of the city’s residential areas in the New Deal structured the city’s social geography in  imaginary construction ofways that reflect the continued exclusion of African Americans and blacks from the market of legitimate home mortgage in much of America through the 1960s, described so compellingly by Ta- Nehisi Coates, and in Oakland not only reflect the deep divides in residential ownership but created social disparities but record scars that make the city’s future harmony particularly difficult to re-imagine.  The zones of imbalanced opportunities for home ownership that long existed in the city created perpetuated deep social divides among its residents, often left without the chances of refinancing that were available to many other residents from the 1930s in the United States, as its port and low-lying areas became victims to a classic image of “blight” with roots in its deep abandonment by the public good in ways not yet overcome.

OaklandBerkeleyHOLCmap

From the first settling after the San Francisco earthquake of the Oakland hills, the demographic divides Oakland’s settlement seem to have been reflected in the value of residential ownership in its neighborhoods in ways revealed in the fractures lines of the map of the Home Owners’ Loan Corporation, and which have continued to divide its neighborhoods even after a period of urban growth.  The absence of clear neighborhoods or community organizations around the major traffic arteries that Oakland has long been defined by at its port and older shipping canals created something like a social divide not only in this early HOLC map, but that has been perpetuated within the socioeconomic divisions that were so starkly reflected in the “red-lining” of urban real estate.

Redlining By the Shore

Even if Oakland has been billed a “livable city,” the “split personality” is revealed in the divides starkly illuminated by a map of social lifestyles generated by an ESRI tapestry charting dominant lifestyles–purple noting High Society; blue “upscale avenues;” teal “Metropolis;” light bright blue “metro trendsetters;” green “seniors;” and tan and brown “inner city,” “highrise,” or “up and coming.”

The map shows the city’s split personality:

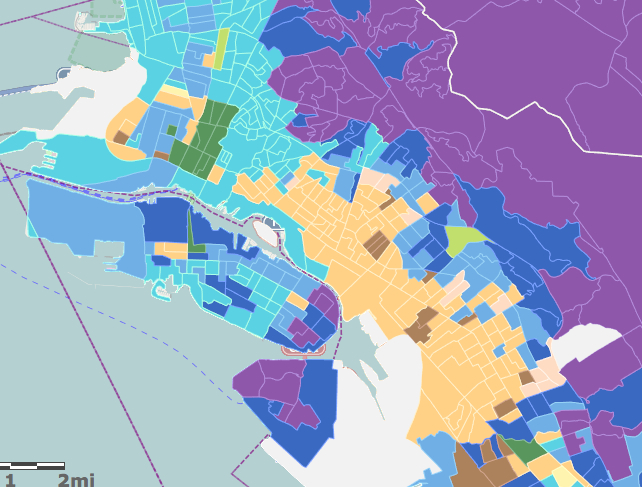

esri dominant lifestyle est bay

In a year that boasted crowd-sourced mapping of the San Francisco Bay, organizing the demographic divides that continue to shape Oakland deserves our sustained attention–and the varieties of viewing the divisions and distributions in the settlement of Oakland’s space.  Unlike San Francisco, dominated by some 359 skyscrapers in its downtown and other regions, Oakland is far more geographically disperse and diffuse, with only a small number of buildings over fifty meters all clustered by Lake Merritt–including those noted in blue, under consideration or construction.

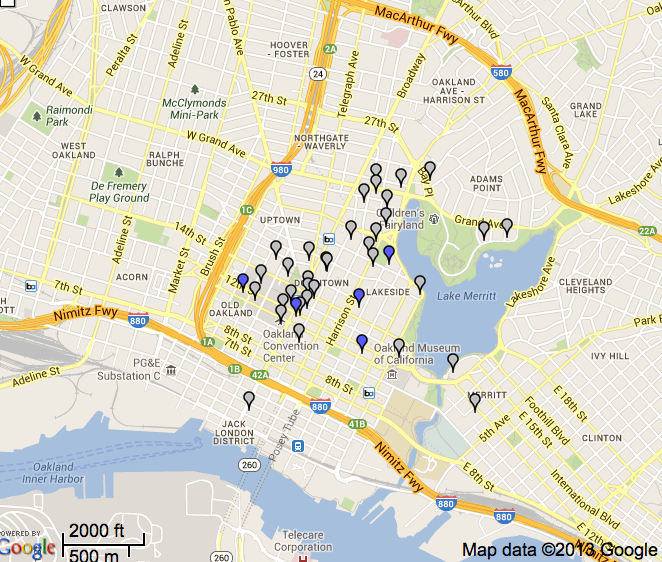

Skyscrapers in Oakland-  50 meters

The recent ambitious and brave investment intended to equalize these clear socioeconomic divisions and to prevent them from being perpetuated by public services from schooling to economic opportunity is a step in the right direction and, based on a back-of-the-envelop calculation, seems to have its priorities and direction of resources fairly straight in how it has decided to invest in Oakland’s neighborhoods’ futures.

OaklandOpportunityImpactOverview-1024x663Distribution of San Francisco Foundation’s Investment in Oakland

But how to frame and orient the viewer of a map of the city’s demographic divisions is fraught, given the difficulty of uniting Oakland as a whole, or even in abstracting an analogously unified image that connects its disparate inhabitants.  The network that bounds the city was advanced rather optimistically in a map that elegantly promoted the lost or abandoned system of Key Cars whose web linked downtown Oakland to the Temescal and Alameda–the infrastructure for the local economy that it did up until its complete dismantling by 1959.

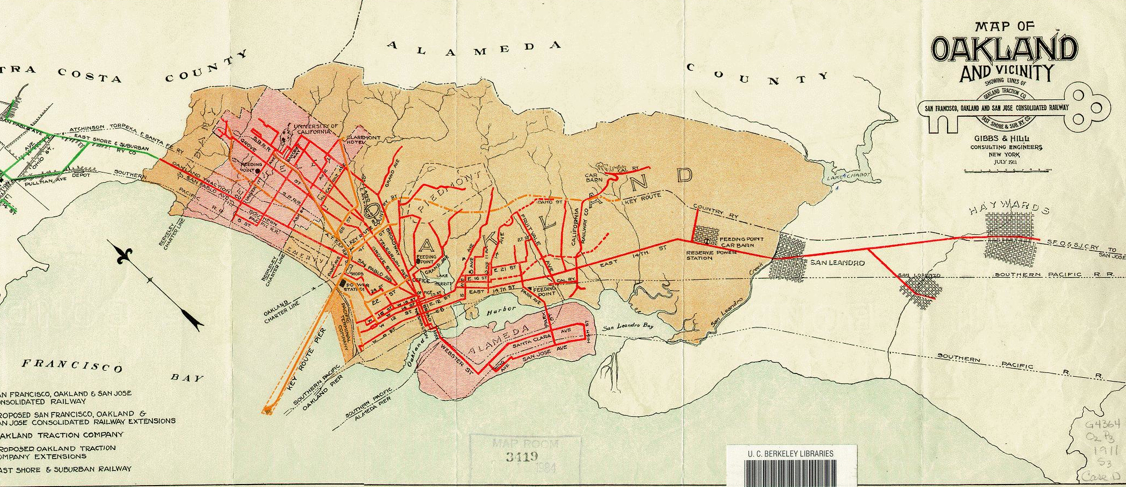

Map of Oakland and Vicinity- Key Car System

The serviced networks that any map foregrounds, even one of transit routes, engage their readers by networks of inter-relationships.   The above map affirms a network of transportation for their rider, suggesting the ways that the infrastructure by which the Key-Car systems united downtown Oakland and the vicinity–much in the manner current BART maps promise to link everywhere in the East Bay in a radius to Point Richmond, Brentwood, and San Jose.  The current BART network may link the Bay Area, indeed, as Oakland seems to be forsaken as being the economic it was by transit authorities and Bay Area residents.

But Oakland is also a city whose social space was long both divided and eviscerated, as the network of streetcar transit was dismantled, the railroad stations that centered the town from the 1880s declined or closed, preparing for the razing of the West Oakland residences of many porters for the MacArthur maze, long before the collapse of the I-880 Cypress Freeway in the 1989 Loma Prieta earthquake–and the subsequent massive shifts in home-ownership as a large number of houses went underwater after 2007 led to a wave of foreclosures that was almost distributed across the city, and which redefined its social space once again.

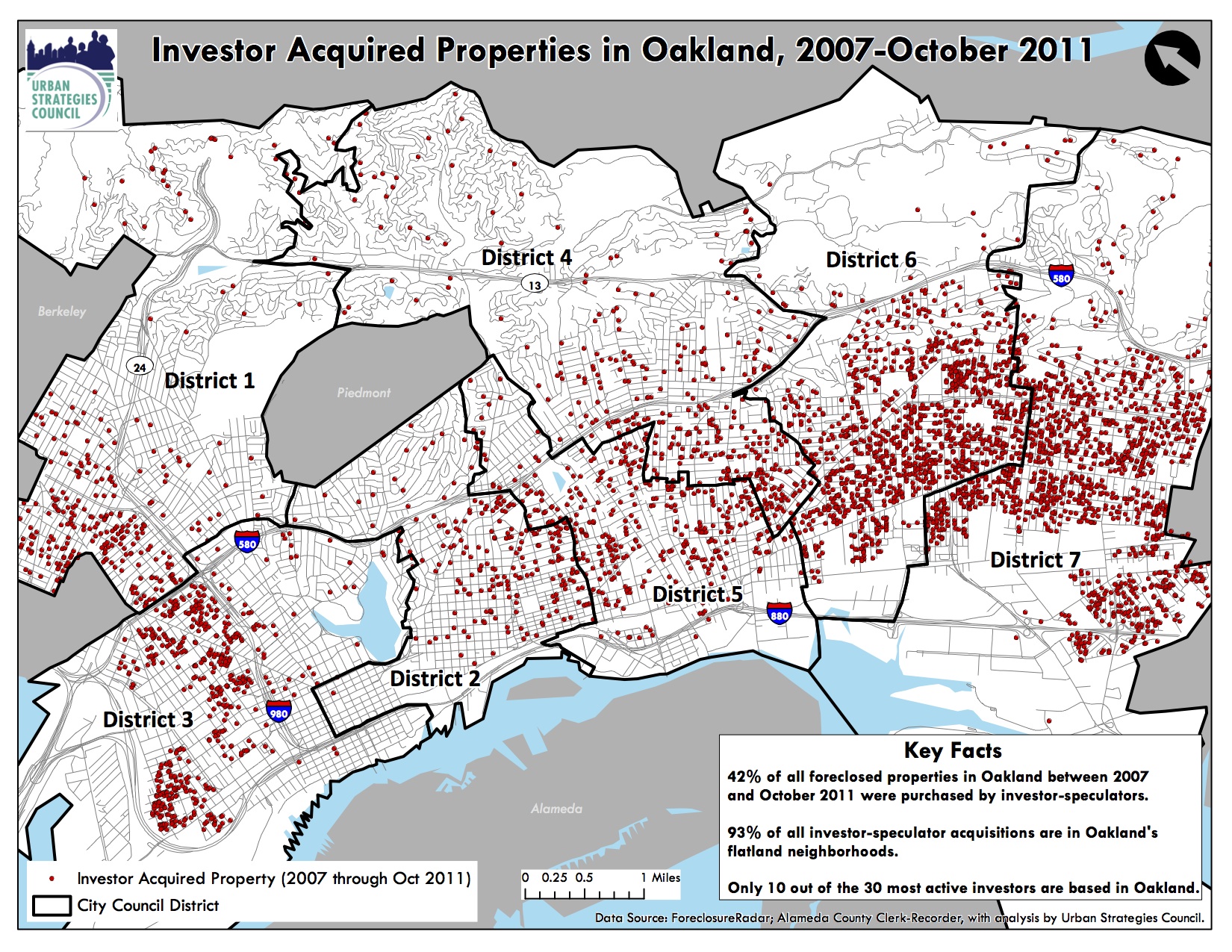

FORE_MAP

The divides and diversity in Oakland make the mapping of the city of particular interest as tools to understand its social reality.  In a society where we are regularly mapped and surrounded by maps, the critical of reading maps is recognized as an important tool to negotiate and mediate lived social space.  What sorts of divides and continuities emerge in a city like Oakland, historically defined by considerable racial diversity and income disparity?  How to map so many variations in one place?

When Denis Wood and John Fels described the map as an ideological construction of space or territory, they took time to examine the surrounding ‘paratext’ to maps as keys or markers that revealed the ideological construction of the space within the “nature” of the map, created by interpretive legends and iconography, as well as the semiotic conventions of the map itself:  yet interactive urban maps provide much more of a creative cartographical conventions and treat the map as something like an open text.

In their critical examination of the authority inherent in the medium of the map, The Nature of Maps, Wood and Fels argue that the relation between a map and territory exists through how cartography–as much as cartographers–“constructs the natural world” in relation to other sign systems, construing the relation of a ‘map’ to ‘territory’ by how maps inescapably make their subject ideological.  Taking as their case in point maps of nature, they argue the order of maps demand assent from readers through what they call the ‘postings’ and the relays that the map creates to the world it ostensibly depicts, and the new understandings of space it creates.  Wood and Fels argue “relays” in maps, tied to the texts inherent in them or positioning in books or  paratexts, which uniquely promote the construction of meaning, effectively organizing complex mental spaces to understand nature in maps, whose structure demands assent to create truth-claims about nature, and transform the space of the natural world into a structure by which nature is spatialized as known.  The Barbari and Rosselli views assert an ideology of the local, spatializing the city as it is best viewed and encomiastically celebrated as a microcosm, even though the “paratexts” by which one reads a map are left tacit for their viewers.

Yet the map does not begin from an empty space, so much as it is rooted in a space that is inhabited:  it indeed tracks multiple networks of inhabitation.

Oak 1871 Birds Eye View

Tempting as it is to argue that social space fills in the empty space of a geographic region, the maps of Oakland’s inhabitants suggest a remaking of the city’s social space–and present an image of the remaking of that space viewed from the ground up.  For rather than providing a fixed or authoritative transcription of space that promotes “a standard scientific model” that creates a “mirror of nature . . . through geometry and measurement,” as Harley wrote was endemic to the discipline of cartography, or invest authority in a single map, the variety of Google Maps templates to plot data from the US Census for the years 2005-9 create a set of multiple maps in themselves each provisional, which they invite viewers to act by ordering their content.  It is perhaps no surprise that, in an age when maps proliferate, and we are both regularly mapped and surrounded by maps, the appeal of the website is that it provides tools to select variables and determine geographic parameters about the city that we can know:  indeed, their interactive nature provide a shifting notion of a map as a graphic fixity.  Wood and Fells primarily examined the organization of space within the printed map, critically reading map’s insertion in printed texts and their relation to the semiotics of written legends.

The compilations of maps based on census data offer, at a far greater granularity than other maps, to divide space by variable criteria of income, race, or level of education to offer what might be treated as elements of a composite picture of the city’s inhabitants–from the ground up–rather than demanding assent to a given cartographical record.  In a sense, the interactive maps below start a discussion about the nature of mapped space from which one can begin to examine the city’s social space.  The interactive map creates an open text whose variables and criteria users can create.

They provide a basis to question, critique and re-evaluate question the dominance of stereotypical categories of local violence or gangs as relevant descriptors of the city, but provide a bit more complex picture of its social composition.  For the interest of these maps lie in how viewers map them as simulacra against their mental maps, rather than in their mimetic claims:  ‘simulacra’ since all maps are both filters of information that parse the relevance of social space and embody a coherent order of space, providing deeply social tools for reading.   Rather assigning integrity to the map as a unique document, we can understand its ‘social life’ through how each creates and constitutes its own social reality for readers:  the Google Maps templates offer a basis to refract socio-economic distributions in the city, rather than fetishize the authority of the given map as a form that commands assent; the familiar templates increase the improvised nature of the comparative mapping exercise.  But Matthew Block, Shan Carter, and Alan Maclean are also particularly inventive graphic artists in how they use of Google Maps–especially in comparison to how it is usually used by others.

The interactive maps created from the Census Bureau’s American Community Survey provide tools to track social realities across the nation, and filters to view specific variables in each zip-code and neighborhood.  I’m interested how maps embody Oakland as a coherent entity, and in Oakland a test-case to examine maps as embodiments of space and to illustrate spatial divides, as well as to filter different aspects of social space.  The interactive maps devised by Block, Carter, and Maclean employ Google Maps templates to invite viewers to process the coherence and divides within data from the US Census in spatial terms, using data for the years 2005-9 to create multiple maps, generated on demand, that refract or mediate statistical realities in visual formats which provide compelling ways to embody and understand social realities from the ground up. The statistical “maps” map at stunningly finer grain that reality–by “Mapping America: Every City, Every Block,” as they boast–that use tools of mapping creative interventions to analyze the Bay Area and its inhabited landscape; the mapping forms offer tools more than vehicles to demonstrate variables of race, income, education, or presence of recent immigrants, offering alternative models by which the region might both be mapped and, by extension, surrogate realities by which its composition might be known.  As much as surrogate realities, they refract pieces of that reality that we must juggle and assemble for ourselves, less attentive to the semantics of the Google Maps frame than their content. One might compare them to conventional maps based on skimpier data, to which their detail and agility provide a sort of foil–starting from the graphic charting crime-density in the Bay Area based on the police blotter.

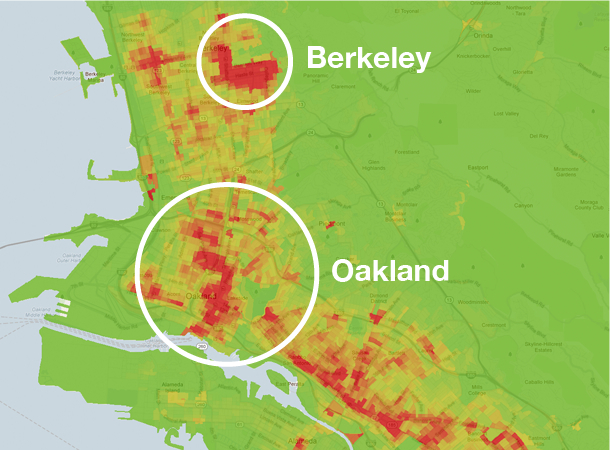

Berkeley:Oakland Crime Density

The map is surprising for how the area immediately around the campus is a thick blotch of indelible red, bleeding into its nearby areas and along Telegraph Avenue like indelible ink.  Most of this “crime” is based on calls to the Police Dept., including a significant number of calls about problems of noise around fraternity row:  the impermeable barrier both around campus can be explained by the different policing agency that supervises the university’s campus, and the boundary of the Berkeley Hills to the East.  Crime is mapped not only indiscriminately, but distributed to reflect the contours of public complaints, as much as actual crimes.  Although the red splotches and streaks around much of Oakland and focused in its downtown seems in keeping with the difficulty of maintaining control over the dispersive city, while around UC Berkeley are dense stains of intense crimson that corresponds to the frequency of calls that the local police receive near campus.  It is interesting to contrast the map to that of San Francisco–where a huge amount of crime is clustered in the downtown, near the Embarcadero, Tenderloin, and Mission and some pockets around Van Ness–in a broad field of relatively crime-free green.

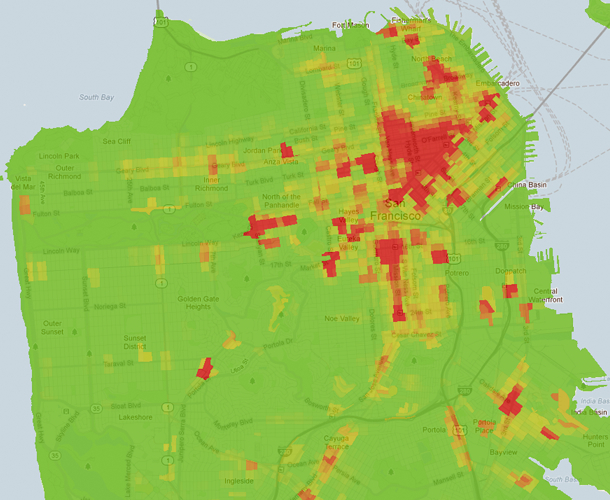

SF Crime Density

And so, if we shift mapping forms to a sort of heat-sensitive map of the violence committed and reported, the hot-spots of Oakland are more readily apparent–almost as a diffuse miasma of violence spread over neighborhoods like a viral form whose trajectory is difficult to explain or track:  heat-sensitivity is an apt cartographical metaphor of the subject charted:

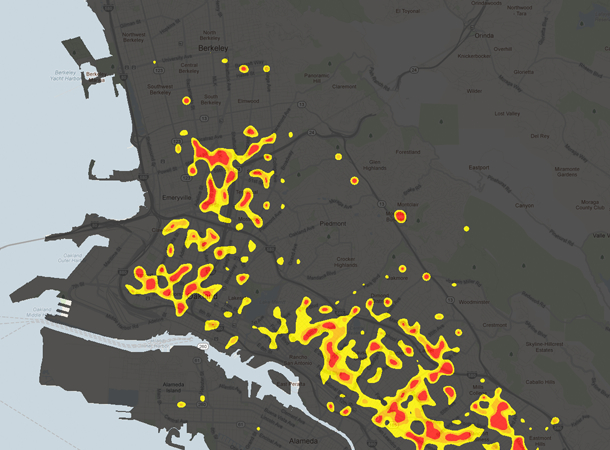

eastbay_violent crime

The map of hot-spots of violent crime provides a different picture, if a tragic one, extending along the city’s major streets deep into East Oakland.  One might ask how this maps onto the city’s racial diversity. Given common predispositions, it might make sense to reflect on the city’s composition with greater granularity.  Does violence correlates to the complex ethnic or racial distribution of the city?  or to income?  or to gangs, as often suggested?  The interest of the interactive maps lies how viewers map these simulacra against their own individual mental maps, as much as in their mimetic claims:  ‘simulacra’ since all maps are both filters of information that parse the relevance of social space, providing deeply social tools for reading.   Rather assigning integrity to the map as a unique document, we can understand its ‘social life’ through how each creates and constitutes its own social reality for readers. Aside from the heat-spots in West Oakland, race is not a determining factor in a clear a way at all, although the ethnic diversity of Oakland–a historically African American city with a rapidly shrinking number of areas dominated by African American populations.  It’s in fact striking that the greatest mix of black and hispanic Oaklanders in any neighborhood occurs on the edges of Oakland:  and that the island of Piedmont is the only area that’s white.

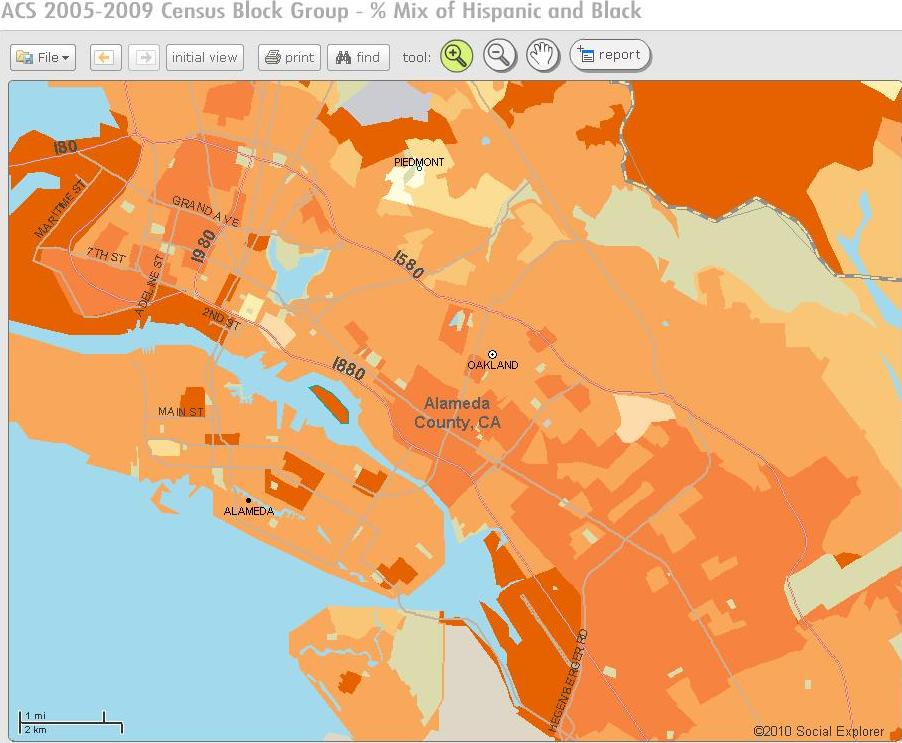

oakland-racial-map

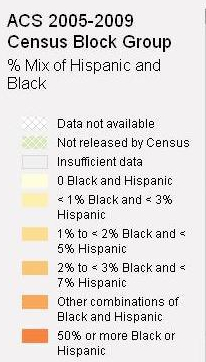

Census Block legend

The same data can readily be re-mapped to present a distinctly different picture of the city, emphasizing urban diversity, by using the US Census Bureau’s data from 2005-9, using the American Community Survey.  Block, Carter and Maclean exploit the Google Maps platform to embed Census data in color-coded terms, which shows small pockets of African American concentration by light blue, but relative integration with the greatest concentration of Asians near Chinatown downtown.  The below aggregates units of fifty people, rather than proportional composition, to provide finer granularity of the population and of each neighborhood in Oakland, if in a less than dynamic manner:

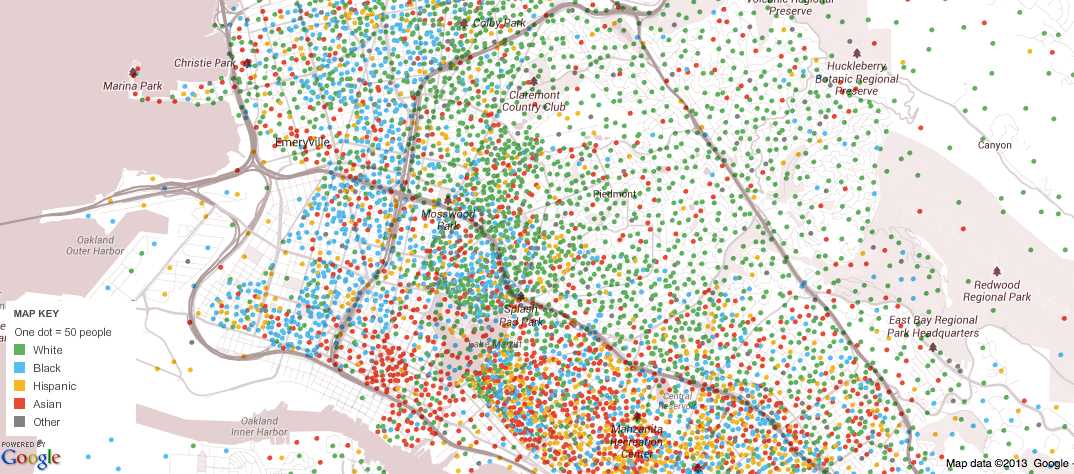

Race in Oakland Google Mapped

Oakland’s complex diversity might well be compared to the clearer clustering in other urban regions of the Bay Area, where whites are more concentrated in clearly bound neighborhoods, and Asians similarly concentrated in areas around Golden Gate park (Inner and Outer Sunset)–if with considerable overlap of Asian and Hispanic populations in the Mission:

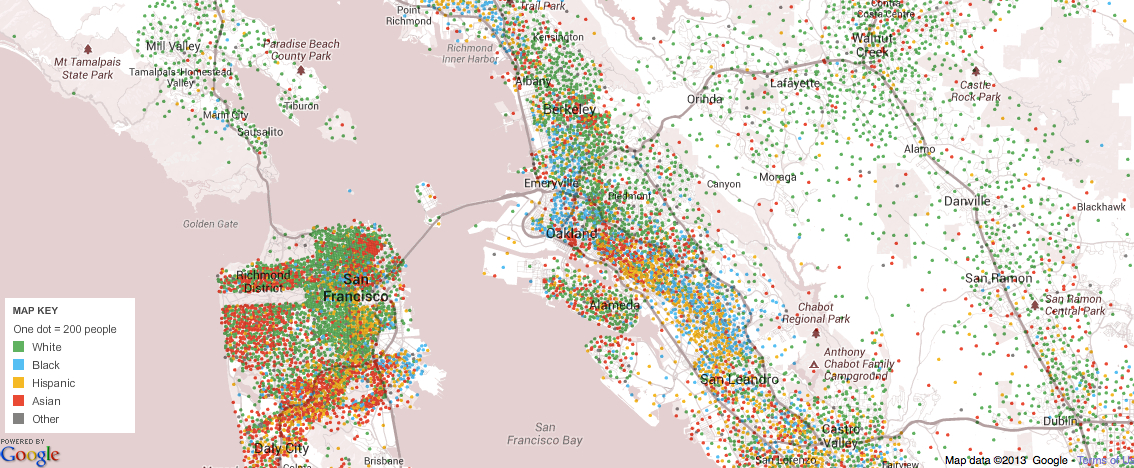

Mapping Race across Bay Area

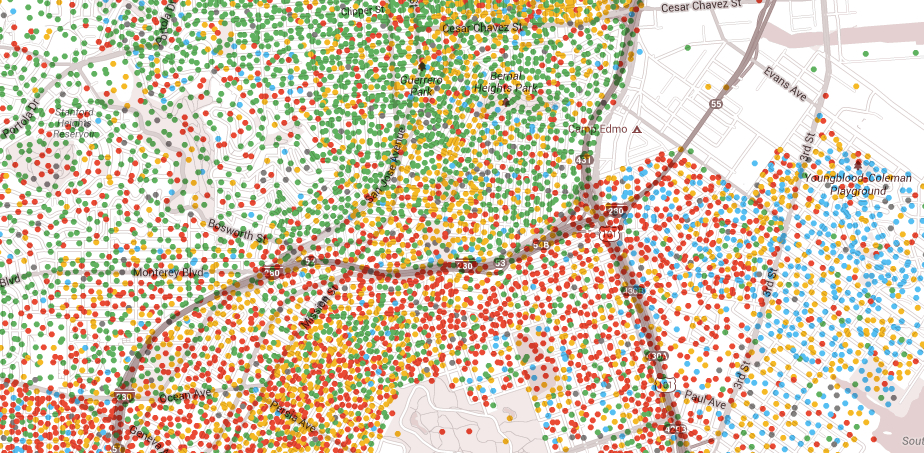

%22Greater Mission%22

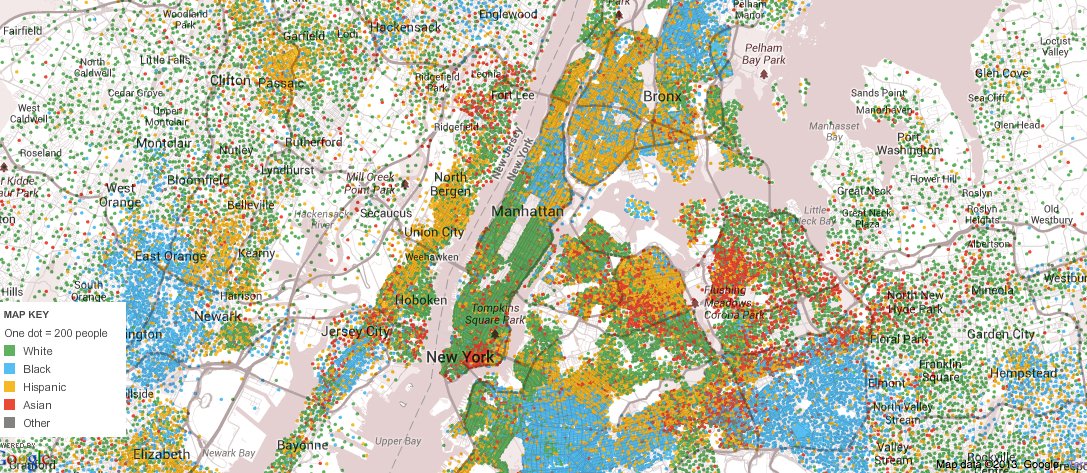

Far more sharply defined geographies of racial separation define New York City, where property values create the starkly demarcated racial composition of  Manhattan, and concentrations of blacks in outlying peripheries in the Bronx, New Jersey, Queens, and Brooklyn, as well as part of Harlem:

NYC Racial Map from 20005-9 census

We see a different picture of Oakland if we look at outside racial self-identification, but examine economic diversity at a finer grain in its neighborhoods.

Back to the Bay Area, stark income divides define the landscape of Oakland in this map of median family incomes in the same dataset, more than race:

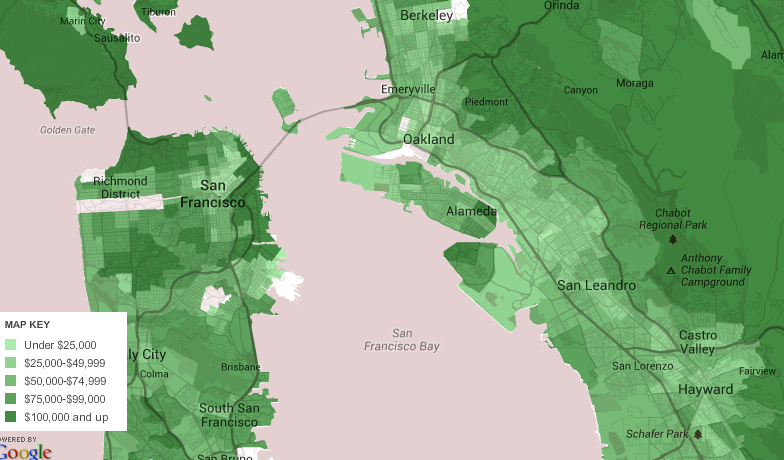

Oakland Household Income Mean

More specifically, the map reveals clear divides and income troughs where median incomes have sunk below $25,000, often reflecting food deserts and islands of an evil toxic brew of desperation, hungry desire, and distraction:

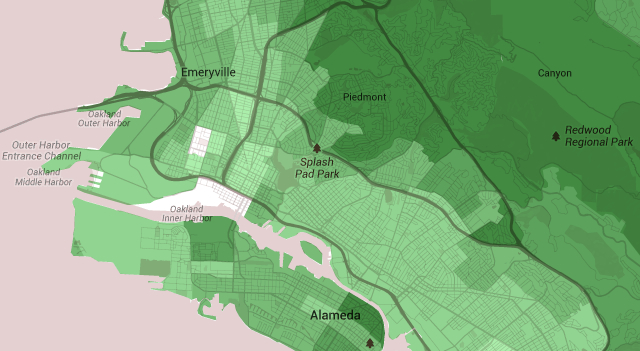

Below 25,000

For Oakland, the website Spotcrime employs catchy icons to track arrests (handcuffs); arson (flames); assaults (fists); burglaries (masked faces under hats); robberies (men running with money-bags); shootings (cross-hairs); thefts (purple silhouettes of men running); and vandalisms (green cans of spray paint spraying red), creating a detailed map to set off mental alarms in the name of a call to “know your neighborhood’s dangers”:

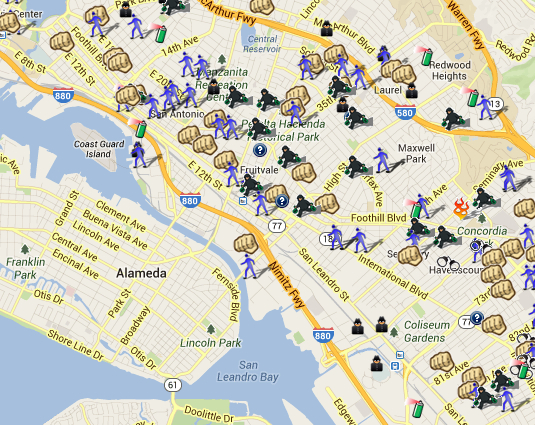

Assaults, Arrests, Arson, Burglary, Robbery, Shooting, Theft, Vandalism

Even if the violence and theft are predominantly in low-income areas, where the map dutifully foregrounds these impressive icons, doesn’t it remove a lot about what good happens in the same low-income areas?  After counting 1, 077 shooting incidents in Oakland in 2011 with 1, 594 victims of guns–the largest category among which (140) belonged to minors, and the greatest sub-group 16-year-olds (40) and 17-year-olds (38)–John Osborne used Google Maps to represent in a fairly schematic way the urban distribution of fatal shootings by neighborhood:

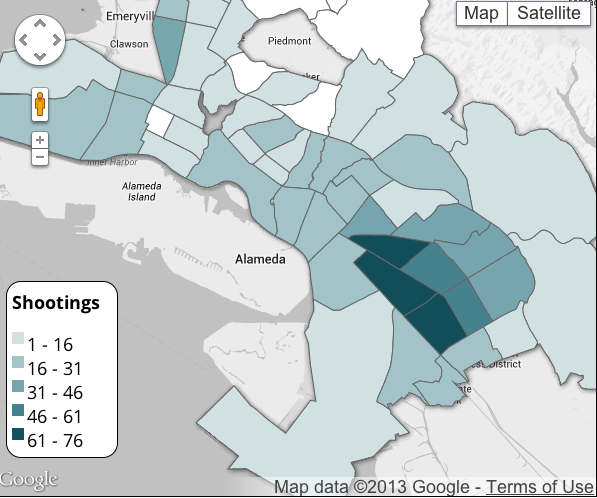

Shooting Map in Oakalnd 2012

The terrifying concentration of aggregates off International Boulevard, a major thoroughfare in East Oakland, past Fruitvale Avenue, the overwhelming majority of whose suspects are male.  In abstracting each as discrete, of course, the map is less successful underlying ties to both prostitution rings or drug deals, so much as a platform to make claims about gangs or organized crime.  The following map of victims of shootings reveals an even somewhat scarier density in the identical area of West Oakland:

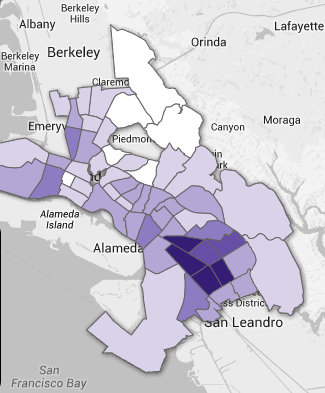

Victims in oakland 2011

What kind of image of Oakland emerges?  It’s difficult to map it clearly.  One striking effect of the greater scale and definition of the maps based on the 2010 census is that the considerable proportion of resident immigrants in the city, which reveals a considerably high percentage–often more than half and up to 70% if not almost 80% in West Oakland, across from Alameda–of foreign-born residents, which demonstrates a considerable geographic mobility among residents that seems specific to the area:  Oakland has long been a cosmopolitan center that attracted the displaced to its margins.

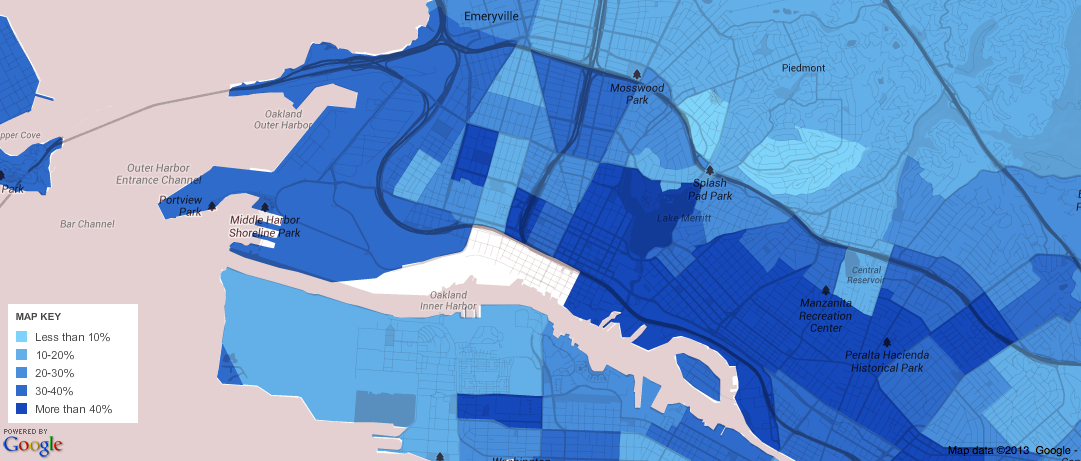

Oakland Foreign Born Map

Immigration is not criminality, but suggests the margins of the city are where the displaced arrive:  displacement might be something of a thread in Oakland’s history, from the arrival of (far more wealthy) San Franciscans after the 1906 earthquake in Piedmont to the Chinese-American railroad laborers who settled downtown, the railway porters whose families created a large community in West Oakland from the 1880s, and workers for the shipyards, or rich communities of Eritreans, Africans, Native Americans (Lakota or Dakota), Hispanic, Hmong, Vietnamese, Somalians and Congolese who most live in cheaper housing and are likely to be taken advantage of in varied ways.  As of 2004, Oakland somehow ranked tenth in the US for the largest number of immigrants, according to the 2006 Census, despite a less vigorous local economy, and almost 30% of its entire population is foreign-born.   The margins of the city somehow remain greater and far larger than its center.

But Oakland remains known, despite this mobility, despite the presence of city gangs, a more deep-seated and almost endemic presence and prime descriptor of the city.  One can–and many do–blame gang-violence, or the competition for turf; but the violence is difficult to separate from prostitution and drug-related crime, not necessarily competition between gangs or gang-related activities, even though gangs do suggest a culture of violence.

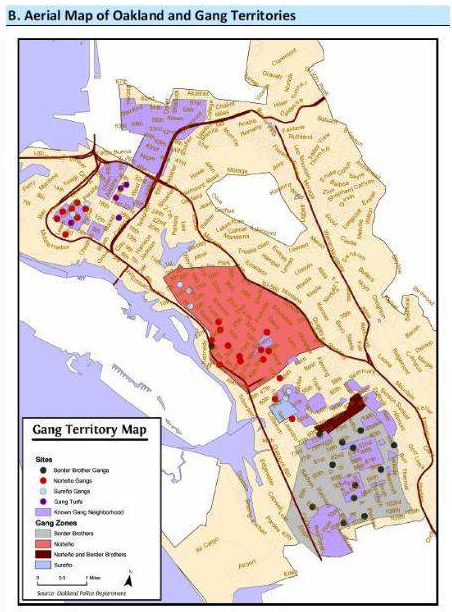

Gangs in Oakland

Gangs are difficult to measure, although the intensity of turf-wars would seem to make it easy to use the map as an indicator of violence.

Yet if one looks at a broader map of “gangs,” the variables seem impossible to keep constant, even in a hand-drawn map of gangs in East LA from 1978 purporting to decode ‘insider knowledge’ about a topography of violence, but provides only the sketchiest of tools:

1978-eastlos-gang-map-oplg-300x224

The difficulty of attributing meaning to the mapping of gangs is more apparent if one notes their widespread presence, given this–perhaps unreliable–map taken off of a “National Gang Map” which reveals a dramatic concentration of gangs and gang members in the Westernmost states:

National Gang Map

Perhaps their presence itself reveals an attempt to make meaning from life or to carve it out of one’s social terrain to the greatest extent that is possible. One compelling map maps educational attainment–with the brightest yellow indicating an inability or difficulty to complete High School at 70%–with less than high school completion hovering around 40% among families.

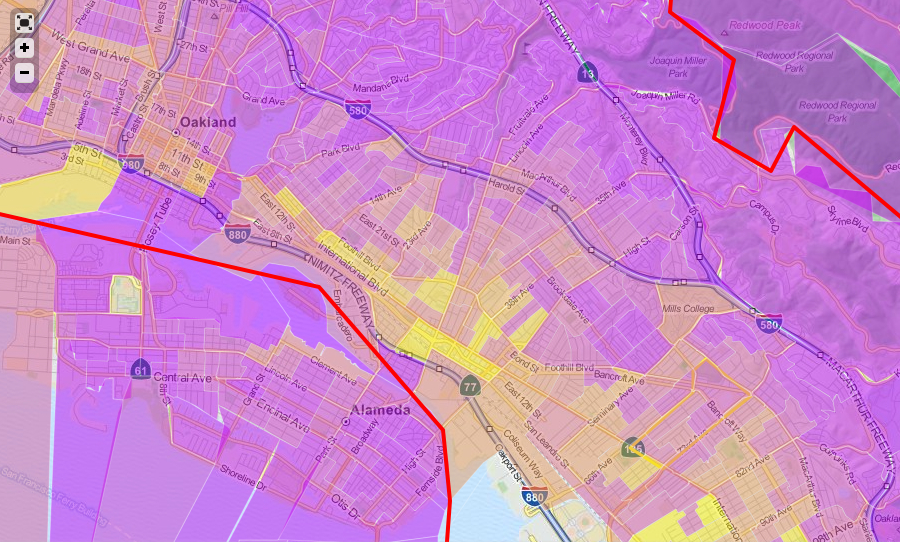

Education--Less than high School degree

In the Bay Area at large, the failure of education in the Foothill-International area is striking, and is doubtless also some degree of failure in socialization if not of public education, and maps a continuing challenge for the city’s School Board and public schools.

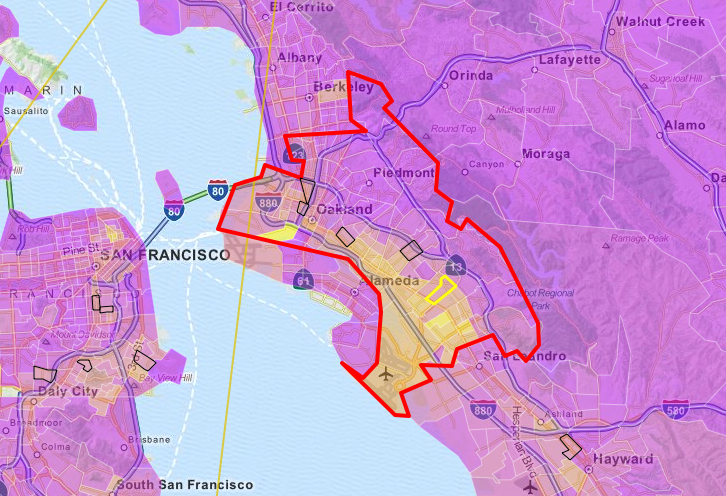

70% no HS Bzy Area

And a corresponding map of college-educated Oakland reveals a bounded drop in below 20%, more roughly characterized at 5-14% with a BA, with large numbers of closely bordering districts hovering between 5-8%:  this might be one measure of the cultural insulation and isolation of the region, if not a clear barrier to what is often described as an ‘achievement gap.’

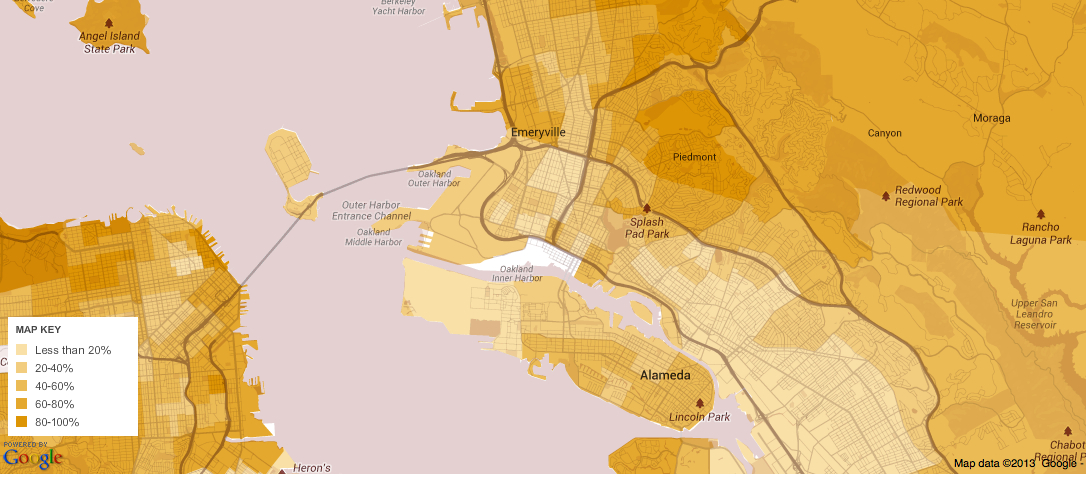

College-Educated Oakland

Those empty tan regions are a measure of the difficulty of shifting a divide between different Oaklands, because it maps a cross-generational or at least temporal divide in the given area over time.  The heterogeneity of Oakland is nonetheless striking even in its inequalities, to turn back to map racial diversity of Bay Area generated in bright colors on the NYT website of Block, Carter and McLean, since it suggests a picture of considerable promise.

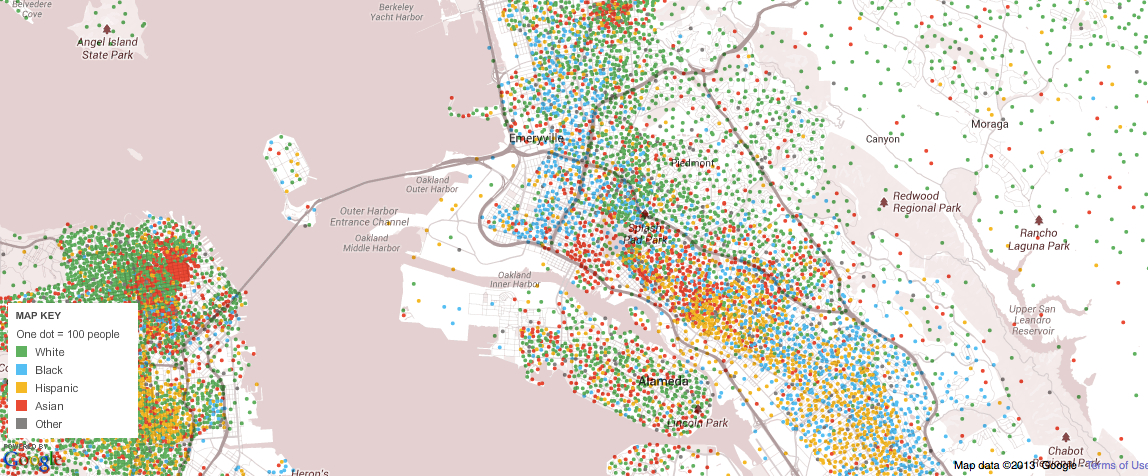

Racial Composition OAK in Bay Area

But of course a map is not a picture.   It is a picture of variability, which can shift depending on one’s chosen criteria.  In the distribution of income levels in North Oakland, aggregating incomes of twelve families reveals a telling integration of an income-mix more striking and apparent than the in the above demographic models:  despite a scattering of upper-income levels across this North Oakland area from Emeryville, across San Pablo, and up to Broadway Terrace and Grand Avenue, lower income levels are present virtually throughout the region, with the exception of East of Broadway, although Broadway provides a clear dividing line of high incomes and lower ones, and the 880 corridor below MacArthur dotted with light blue markers.

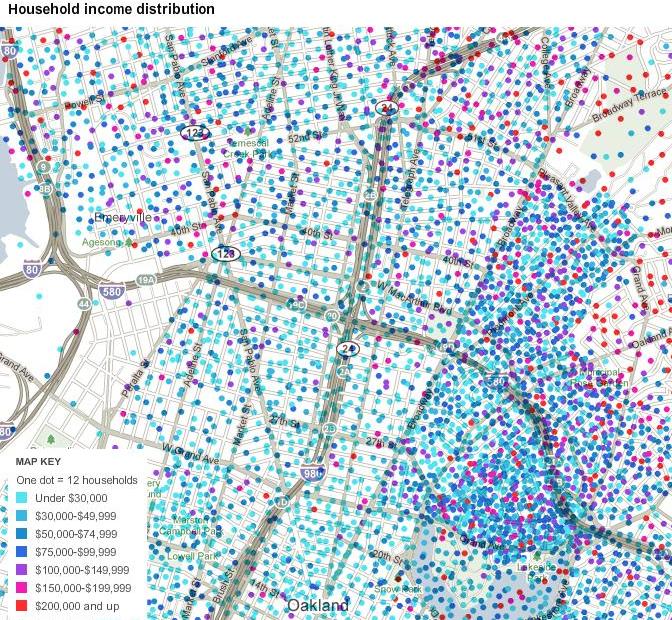

my-neighborhood-income-map

The color-coded map of relative incomes provides us with some possibly meaningful correspondences to the hot-spots in crime.  But I wouldn’t advance the sort of argument that maps crime–or gun-violence–onto variations in household income.  The pictures of the city offer limited tools that suggest possible sites of research that might help to connect these dots.  But they offer useful, ground-up mappings of the city’s inhabitants.

Processing the relations among inhabitants of Oakland offers a way to renegotiate your relation to the city as a whole.  Mapping is about navigating, as well as processing, a surfeit of information, and about making the connections among it, grosso modo, that exist.  The fine grain of the census maps provides both a corrective to our preconceptions, and the start of something like a more fair–and illuminating–map of the city’s social space.

4 Comments

Filed under Oakland, Oakland CA, open data, Racial Diversity, US Census
